Singly Linked List

SuperVingo 2023. 12. 31. 05:53
728x90

Head : Linked List의 시작 노드를 가르키는 포인터
Node : 데이터를 가르키는 포인터(Data) + 다음 노드를 가르키는 포인터(Next)
마지막 Node의 Next : NULL


Search

node = *head;
while(!node) {
    if(node->data == want)
        return true;

    node=node->next;
}
return false;

Insertion

Case 1. Insertion at The Front

  1. 새로운 Node 생성(New)
  2. New->Next = Head
  3. Head = New

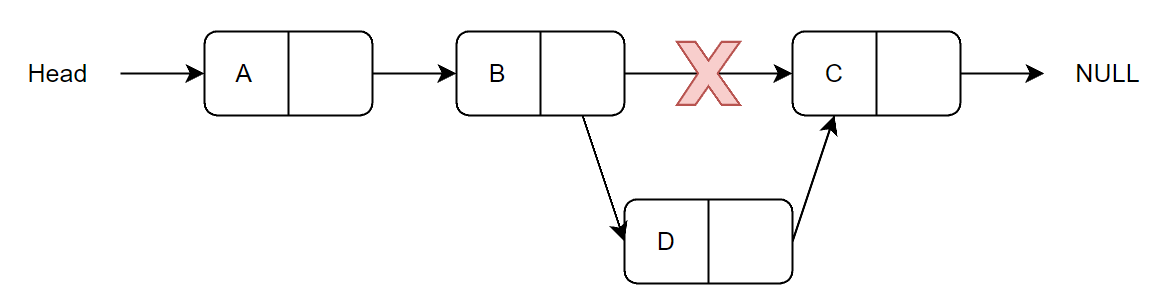

Case 2. Insertion after The Node

  1. 새로운 Node 생성(New)
  2. New->Next = Curr->Next
  3. Curr->Next = New

Case 3. Insertion at The End

  1. 새로운 Node 생성(New)
  2. End->Next = New

Deletion

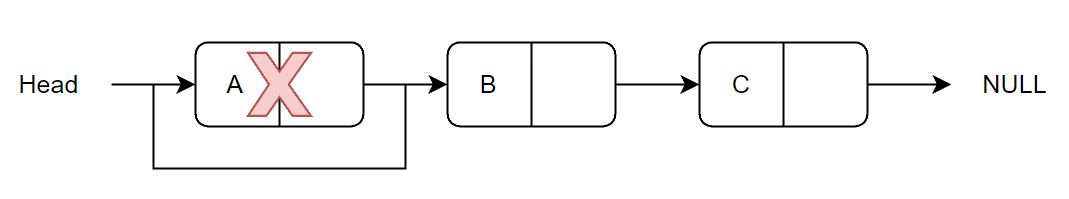

Case 1. Deletion at The Front

  1. Head = Front->Next
  2. Free The Node

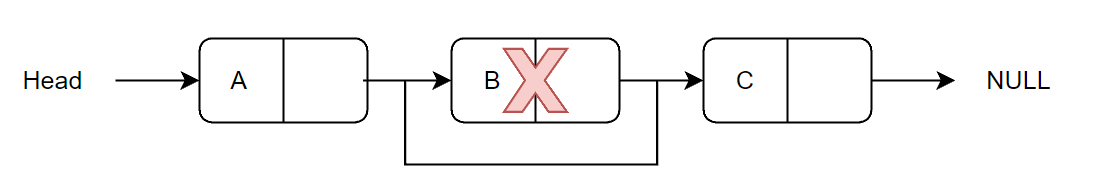

Case 2. Deletion after The Node

  1. Prev->Next = Curr->Next
  2. Free The Node

Case 3. Deletion at The End

  1. Prev->Next = NULL
  2. Free The Node
